Railway Crane Wagon Railway Platform with 5/10 Tons Hydraulic Lift Crane

Category： Railway Flat Wagon
Model: D70
Crane lifting capacity:5 tons or 10 tons
Platform length: 16366mm
Rail gauge: 1435mm
INQUIRY EMAIL

Railway Crane Wagon Railway Platform with 5/10 Tons Hydraulic Lift Crane

1. Brief introduction

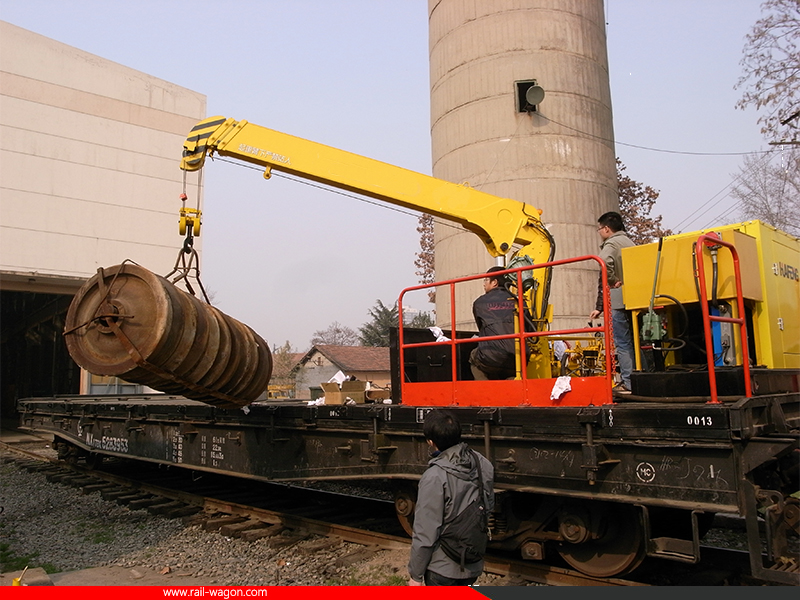

Railway crane wagon is special purpose railway construction wagon. We develop this crane wagons to transport sleepers, rails and other packed construction materials during building the railway. By adding active end plates around the flat wagon, it could also be used to transfer ballast. So this crane wagon is a very economic and useful railway special purpose vehicle, compared with special railway engineering vehicles.

2. Main structures

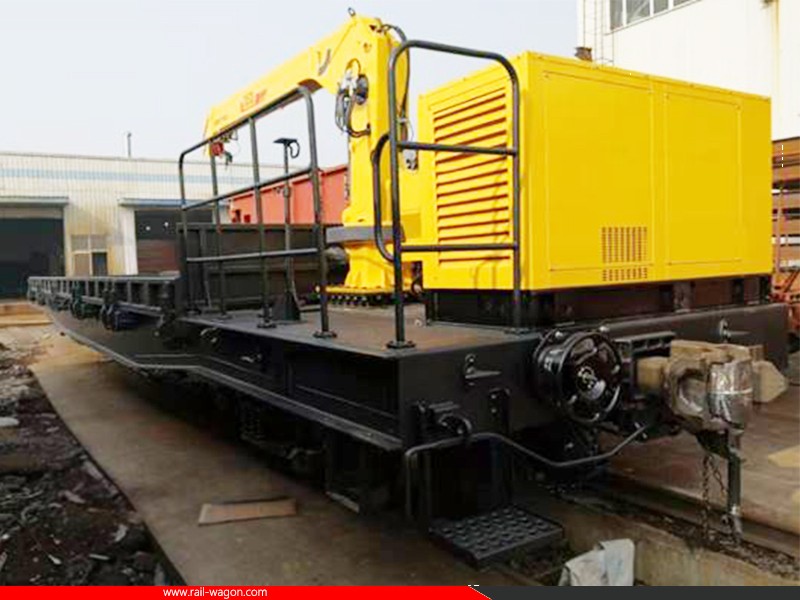

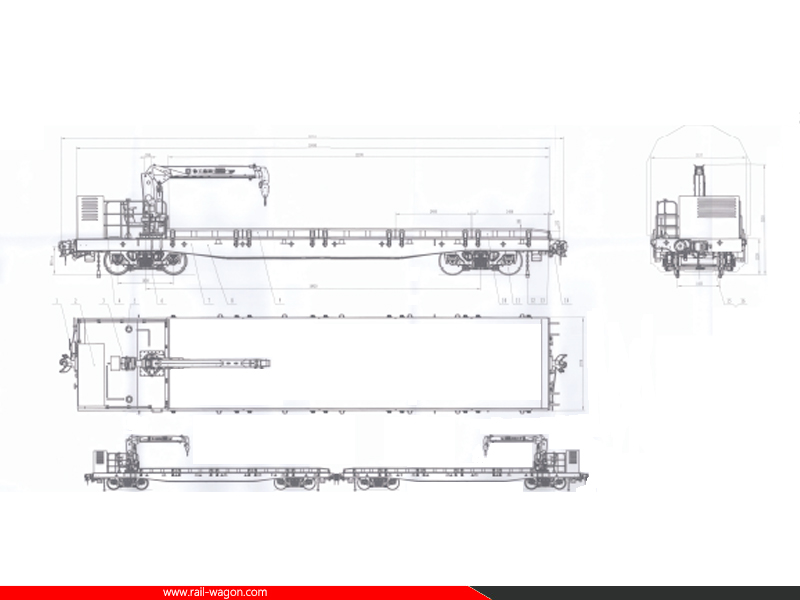

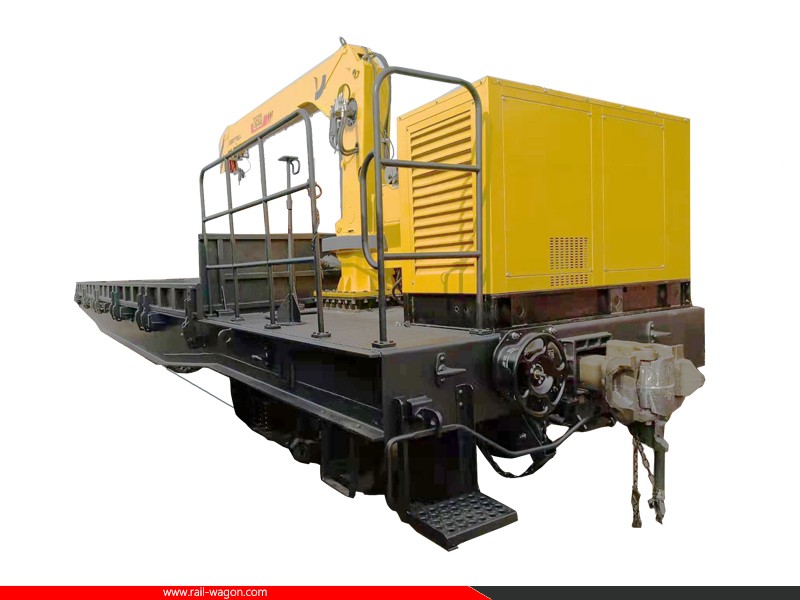

Our railway crane wagon is composed of railway platform and on-board crane. The platform and the crane are mounted physically and work independently.
The crane platform is typical Chinese NX70 railway flat wagon, we could also provide different load flat wagon from 40t to 70t for customer to choose from. The flat wagon is towed by locomotive and the towing speed could be up to 120km/h.

The on-board cranes could be straight arm type or folded arm type. The lifting capabilities could be 5 tons, 8 tons, 10 tons, or 12 tons. The crane will be powered by hydraulic power station, which is composed of diesel engine, battery, hydraulic oil tank, hydraulic pumps, etc. We could install the specific cranes or tooling needed by customers. To improve the safety during work, we could add various limiters and remote control according to customer need.

3. Main technical parameters:

3.1 Platform parameters:

Pay load(uniform distribution)	70T
Tare weight	28T
Axle load	25t
Rail gauge	1435mm
Dimension	16366mm×2970mm×1120mm
Active side plate height	Side plate:420mm ; end plate:270mm
Coupler center height	880±10mm
Min radius	145m
Structural speed	120km/h
Brake method	Air brake and hand brake
Coupler type	No.13 Coupler(AAR)
Bogie type	K6 3-piece bogie
Wheel diameter	840mm
Structural clearance limit	GB146.1 ‘Standard gauge railway rolling stock structure clearance limit’

3.2 Crane parameters:

Max. rated lift weight	5,000 kg
Max. lifting torque	10.5 t*m
Min. rated operating range	2.5m
Max. operating range	8m
Max. lifting height	10.5m
Lifting angle	0-70°

3.3 Power station diesel main parameters:

1	Diesel type	In line, water-cooled, four strokes; WP2.3D36E201 33KW
2	Rated power of diesel engine	≥30kw
3	Diesel cylinder diameter / stroke	100/115
4	Cylinder arrangement	Four cylinders in-line
5	Rated speed	1500 r/min
6	Startup mode	Electric start
7	Generator power	750W
8	Starter	DC24V
9	Application environment	-25℃～+45℃
10	Gear pump	32ml/r
11	Rated pressure	25MPa
12	Overall dimension of equipment (including welding platform)	20008501390
