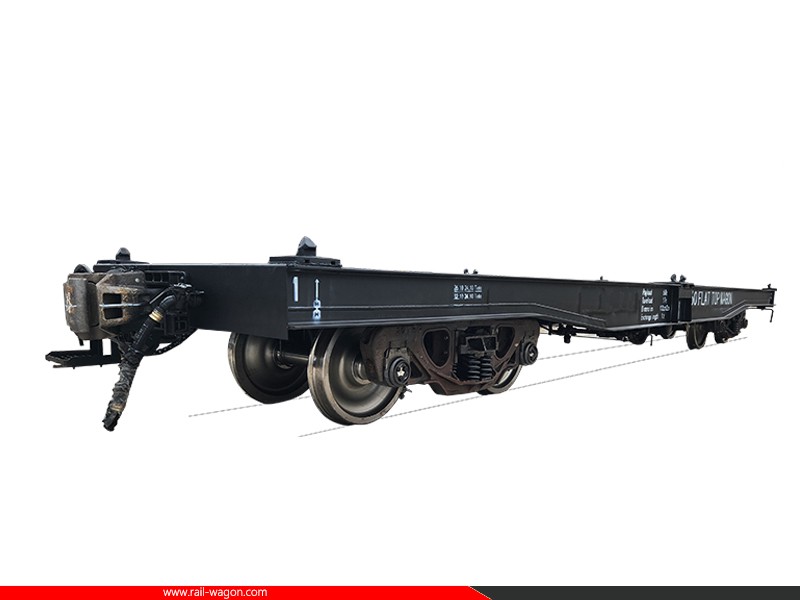

Meter Gauge Container Flat Wagon 60T Pay Load Railway Flattop WagonMeter Gauge Container Flat Wagon 60T Pay Load Railway Flattop Wagon

Meter Gauge Container Flat Wagon 60T Pay Load Railway Flattop Wagon

Meter Gauge Container Flat Wagon 60T Pay Load Railway Flattop Wagon


1. Application

The meter gauge container flat wagon is suitable for 1000mm gauge railway lines in Southeast Asia, and can load and accommodate international standard 20 foot and 40 foot containers.


2. Main structures

The meter gauge container wagon mainly consists of chassis, braking system, container locking device, coupler and buffer system, and bogie.


  • Chassis

The Chassis is a fully welded steel structure, mainly composed of middle beams, side beams, end beams, sleeper beams, large crossbeams, auxiliary beams, etc. The steel material is Chinese Q345B low alloy high strength profile steel.

  • Floor

To make the wagons more widely applied, the container wagon is paved with 6mm Q345B low alloy steel. So the flat wagons could transport some machinery, steels sometimes.

  • Container locking device

There are 8 unit container locks on the chassis to accommodate one 40 foot ISO standard container or two 20 foot international standard containers. The middle four locks are foldable.

  • Air brake device

The air brake system adopts Chinese 120 type air brake system. Its main pipe is suitable for 500KPa and 600 Kpa brake device. Its brake distance is no more than 700m at speed of 80km/h.

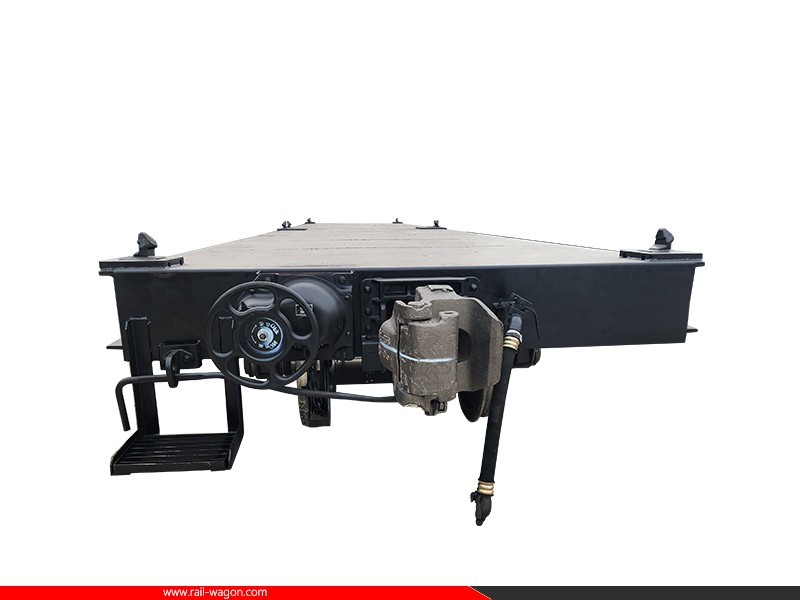

  • Hand brake machine

The hand brake machine adopts Chinese standard NSW hand brake.

  • Coupler & buffer

It adopts Chinese No.13 bottom active coupler and matched yoke and buffer.

  • Bogie

It adopts our self-developed ride control three piece casting bogie. The axle load is 20 tons and the rail gauge is 1000mm. It is composed of wheelset assembly, bolster assembly, side frame assembly, bearing assembly, adapters, foundation brake device, springs, wedge dumping device, side bearings, bogie center plates, and etc. The wheels material is Chinese CL60 840mm wheel and the axle material is LZ50.


3. Main technical parameters:

Pay load

60 tons

Application

Shipping 20 foot or 40 foot container by railroad

Tare weight

17 t

Axle load

20 t

Gauge

1000 mm

Wheel diameter

840 mm

Number of axles

4

Bogie type

Ride control casting bogie

Coupler type

No.13 coupler

Number of container lock

8 sets

Length

13230 mm

Min radius

100 m

Brake type

Air brake +park hand brake

Design speed

80km/h

Limit gauge

Customized

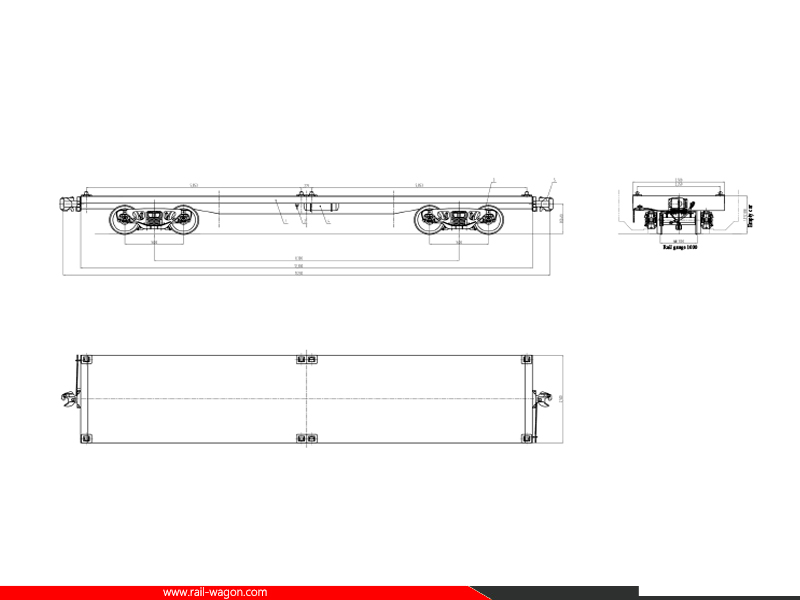

4. Drawing

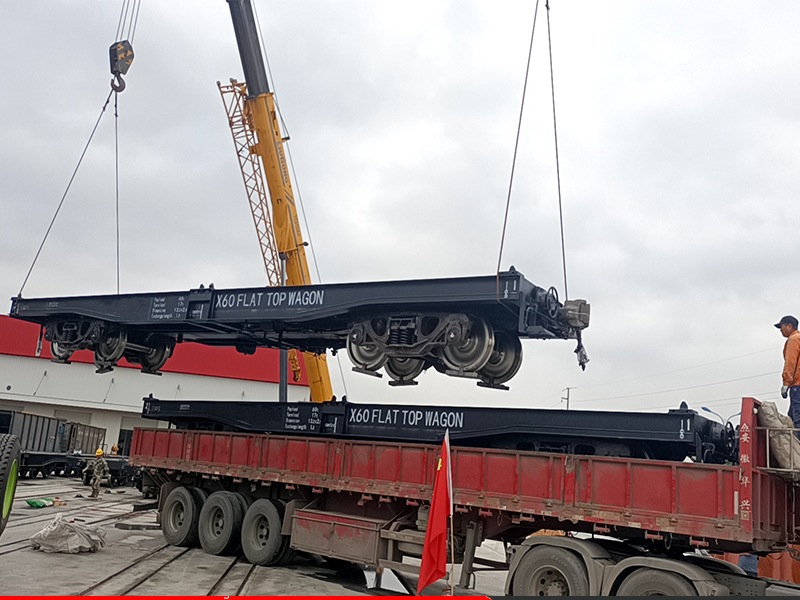

5. Package & delivery

Nude packing, with wheel shoes. Suitable for truck and bulk cargo ship transportation.

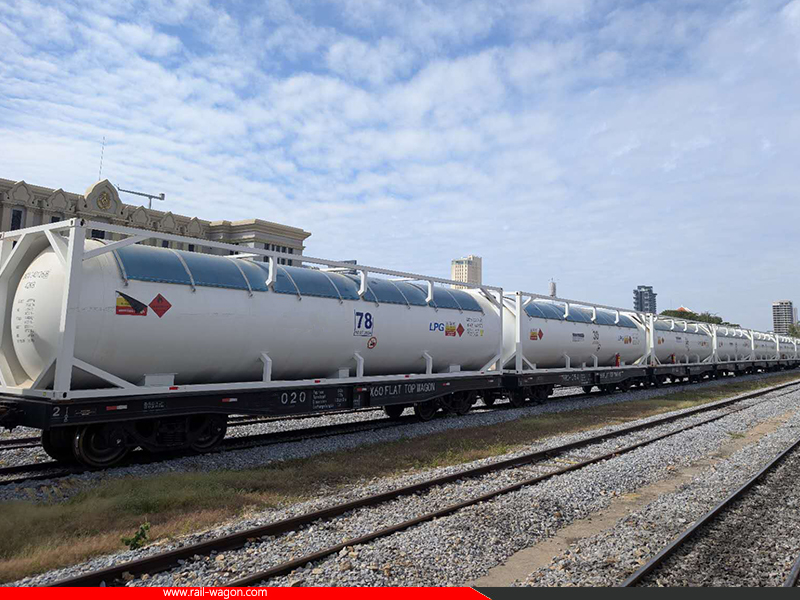

6. Photo running on customer site


7. Flat wagon production process
